mini small farm tractor with cultivator

mini small farm tractor with cultivator

Model No.︰NC131

Brand Name︰nuoliwa

Country of Origin︰China

Unit Price︰-

Minimum Order︰6 pc

Inquire Now

Product Description

Model

NC131

Engine

Type

Diesel Engine

Power

8-14HP

Clutch Type

Dry Typr Multi Disc Clutch

Steering System

Compress Steering Type

Brake System

Small-Scale Braking

Transmission System

Fixed Silding Positioning

Transmissio Ratio

Low Gear 1st Gear

44:1

Mid Gear 2nd Gear

23:1

High Gear 3rd Gear

8:1

Backward Gear

56:1

Tractor Speed (Engine Speed:2400/rpm)
Tubber size:4-12,Length:530mm

Low Gear 1st Gear

4.3km/h

Mid Gear 2nd Gear

8.2km/h

High Gear 3rd Gear

23.5km/h

Backward Gear

3.4km/h

Diameter of Towing pin

26mm

V-belt

Length

1981mm



Quantity

2

Diameter of Engine Pulley

140mm

Diameter of Trasmission Pulley

180mm

Axle

Type

Hexagonal Axle

Size

44.5mm

Rubber Tire

Type

Special tire for tractor

Size

4600-12

Pressure

46pund/sq.inh

Lubricant in Transmission

Type

SAE No.90

Capacity

5.5-6L

Tractor Weight (Excluding the Engine)

210KGS

Price Terms︰ FOB ningbo

Payment Terms︰ TT

Packing︰ carton

Lead Time︰ 14 days

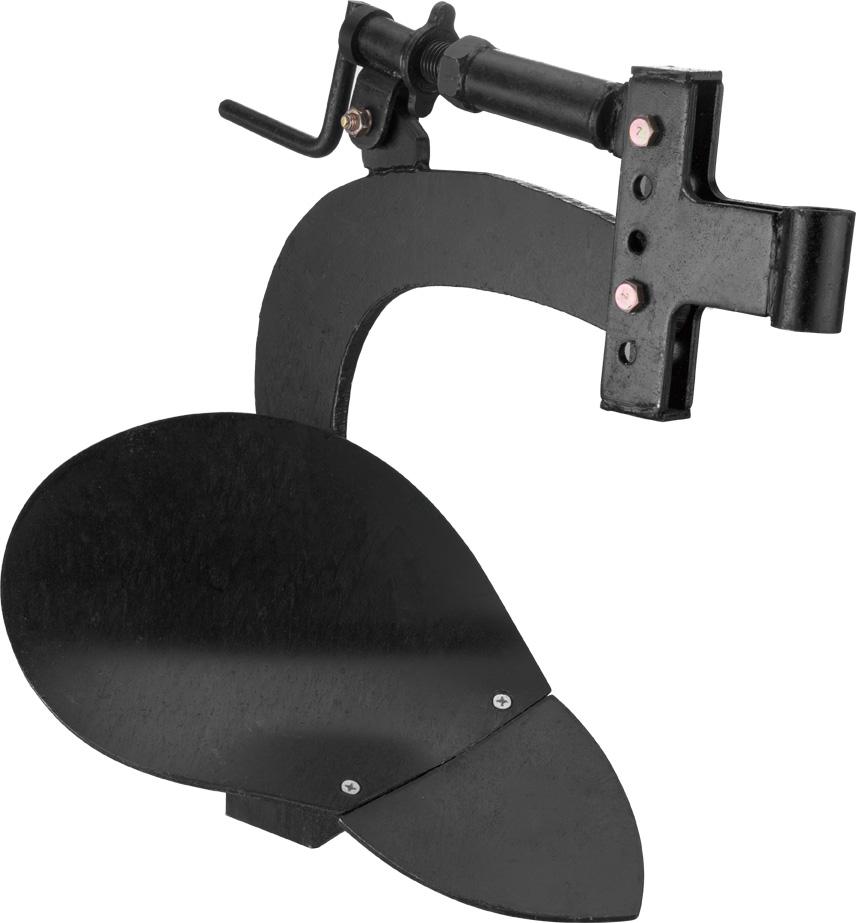

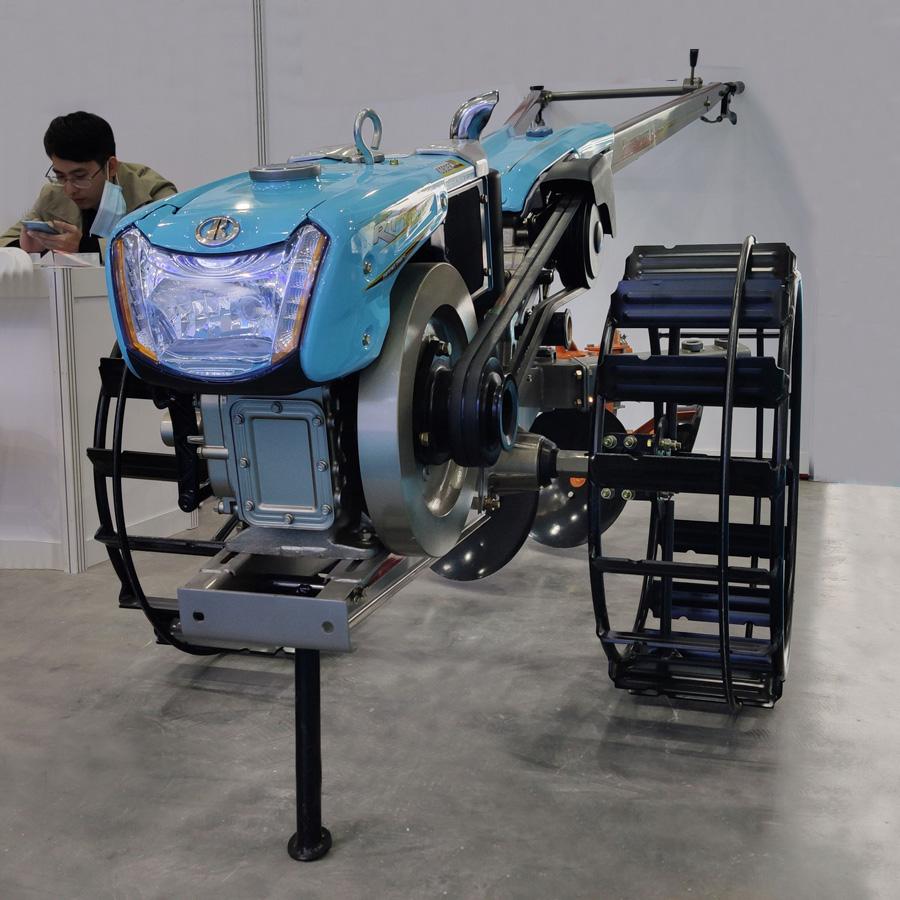

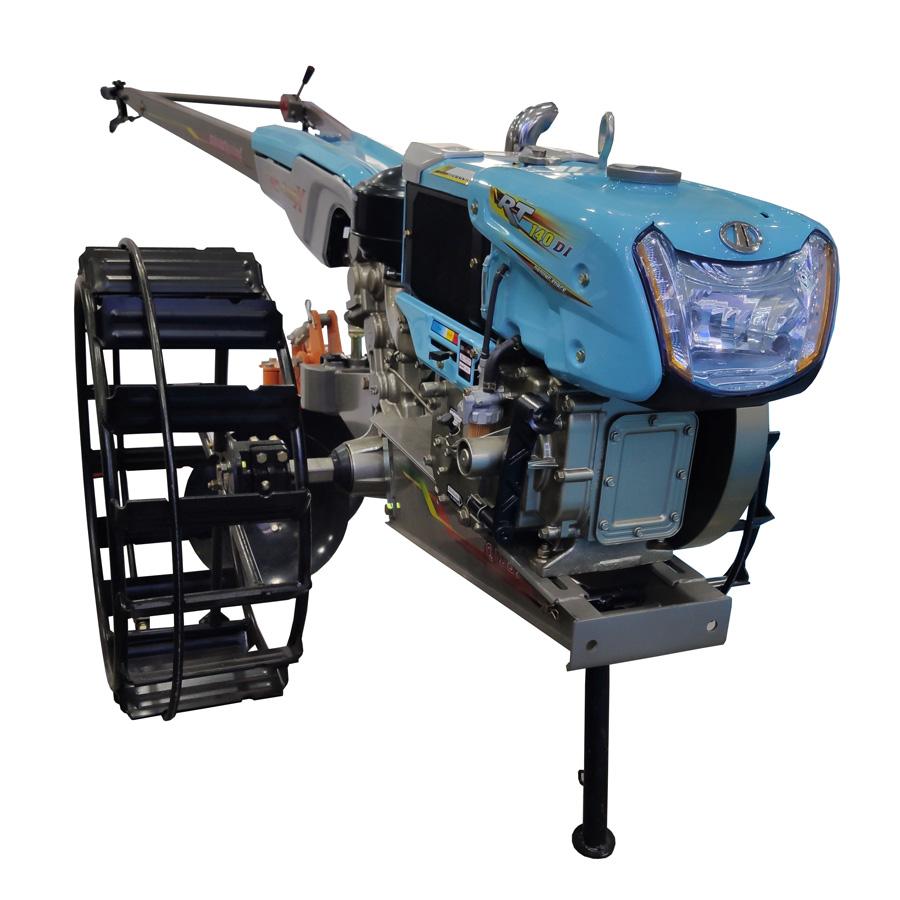

Product Image
