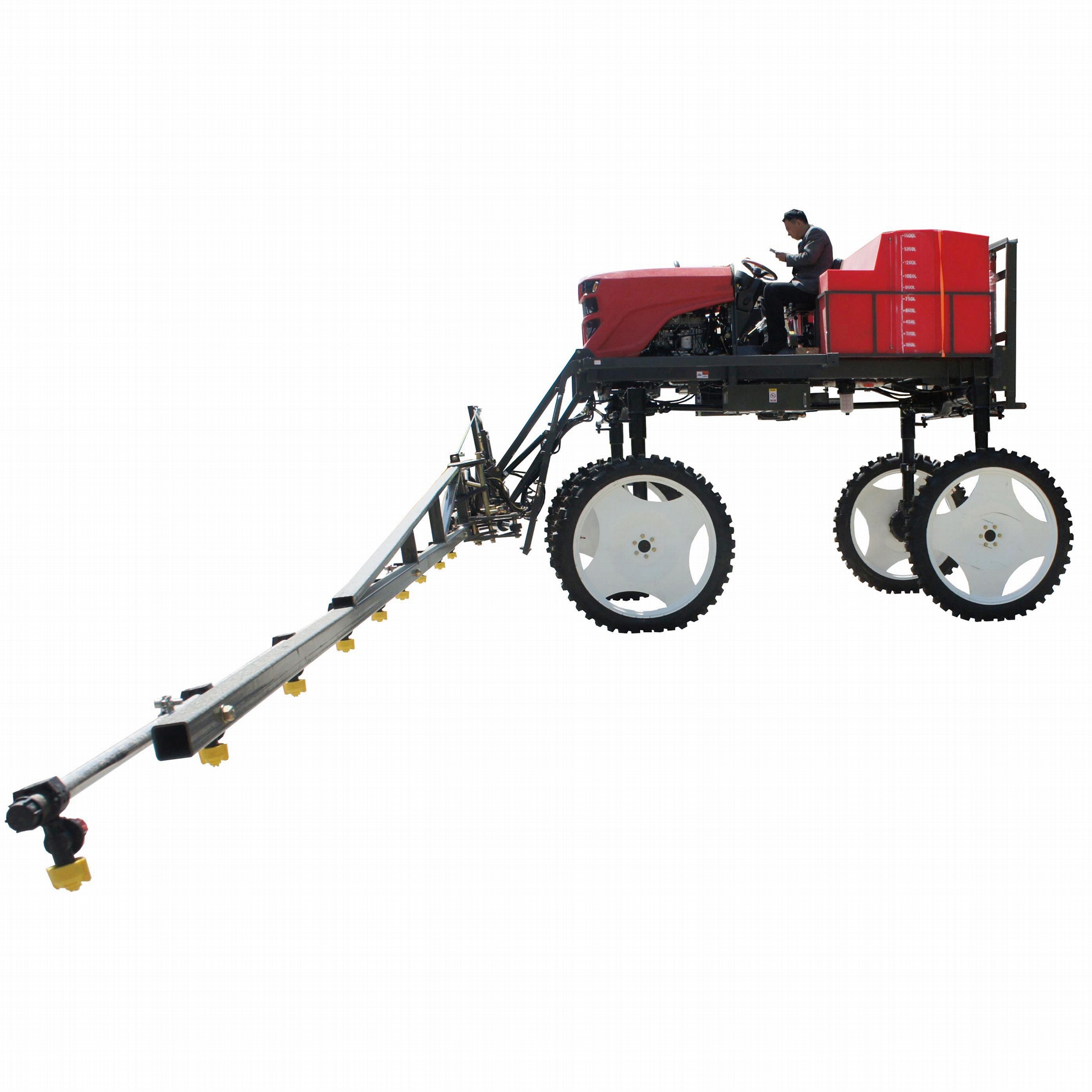

Corn agricultural boom sprayer

Model No.︰

3WPZ-1500D

Brand Name︰

WALI

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

2 pc

Share on:

Product Description

Product Description



The chassis is high, the ground clearance is large, and the passability is good. It is suitable for the growth cycle of not-so-far crops; the spray boom is long and the medicine box capacity is large, which replaces the manual 40 times; the four-wheel-drive four-steer, small and flexible turning radius, easy to work in the field .

1. The only high ground clearance three-point bearing drive axle independently developed, designed and produced;

2. The only complete machine manufacturer that independently develops, designs and produces core components;

3. The uniqueness of the spraying system. Only when there is health, there is everything, and when there is healthy life, there is a home;

4. Full hydraulic balance device spray system;

5. Special steel frame, electrophoresis coating of the whole vehicle;

6. High-density rubber tires;

7. The fourth generation has a special appearance, exquisite workmanship, and unique Chinese red

8. The side gear is adopted to allow users to work easily;

9. The front spray frame is supported by three points, which is safe and stable;

10. The material of the ceiling is polyethylene;

11. The 4 U-shapes on the car are all produced in molds by themselves;

12. Use single-layer steel wire return pipe and oil inlet pipe;

13. Adopt 495 large radiators;

14. The switch handle of the fertilizer spreader has a positioning function;

15. The frame of the whole vehicle adopts pure 100×50 cold drawn square tube;

16. Adopt large silencer.







Model

3WPZ-1500D

Wheel drive

4WD

Dimension

5100x2600x3300mm

Weight

2820kg

wheel tread

2500mm

Wheel base

2660mm

Min Ground Clearance

1600mm

Tire size

1180mm Pneumatic tire

Boom length

1810mm

Medicine box volume

1500L

Steering Type

Four-wheel steering

Engine Specification

Engine model

YUNNEI 74 KW/ 100 HP

Engine type

water cooled, vertical, 4 stroke and direct injection

Rated revolution

2400r/min

Start way

Electric start

Remarks

Optional installation of fertilizer spreader, wheel track/medicine tank capacity/tire/spray bar can be customized.



Price Terms︰ FOB QINGDAO
Payment Terms︰ TT
Packing︰ NUDE
Lead Time︰ 20 DAYS

Product Image
