tractor trailer Walnut tree shaking machine

Model No.︰

4ZG-25

Brand Name︰

-

Country of Origin︰

China

Unit Price︰

-

Minimum Order︰

2 pc

Share on:

Product Description

Multione Tree Shaker - Olive and Nut Harvester

The Multione tree shaker can be used to harvest olives, pistachio nuts, almond nuts, macadamia nuts and other nuts by shaking. With the optional collector fitted fruit falls to the bottom of the harvestor and can then be emptied into a bin by opening the hydraulically operated bottom trap door. Shaker is from operator seat and can process between 40 to 60 trees per hour. We also have shaker units that can be connected to tractors.







A very popular solution because it combines an excellent working visibility with agile movement in the olive grove. The telescopic arm is applied to the side of the tractor using special frames. The hydraulic unit is installed at the rear on the three-point coupling. The movement of the head and of the harvesting (optional) is performed using a joystick located in the cabin. After harvesting the tool can be disconnected in a few minutes.







Model

4ZG-25

Fitted power

≥51.5kW (70hp)

Structure form

Tractor rear trailer

Overall dimension

2800×1750×2200mm

Weight

995kg

Fruit tree max diameter

≤250mm

Vibration range of clap

≤5cm

Vibration frequency

10-12Hz



Price Terms︰ FOB Qingdao
Payment Terms︰ TT
Packing︰ NUDE
Lead Time︰ 15

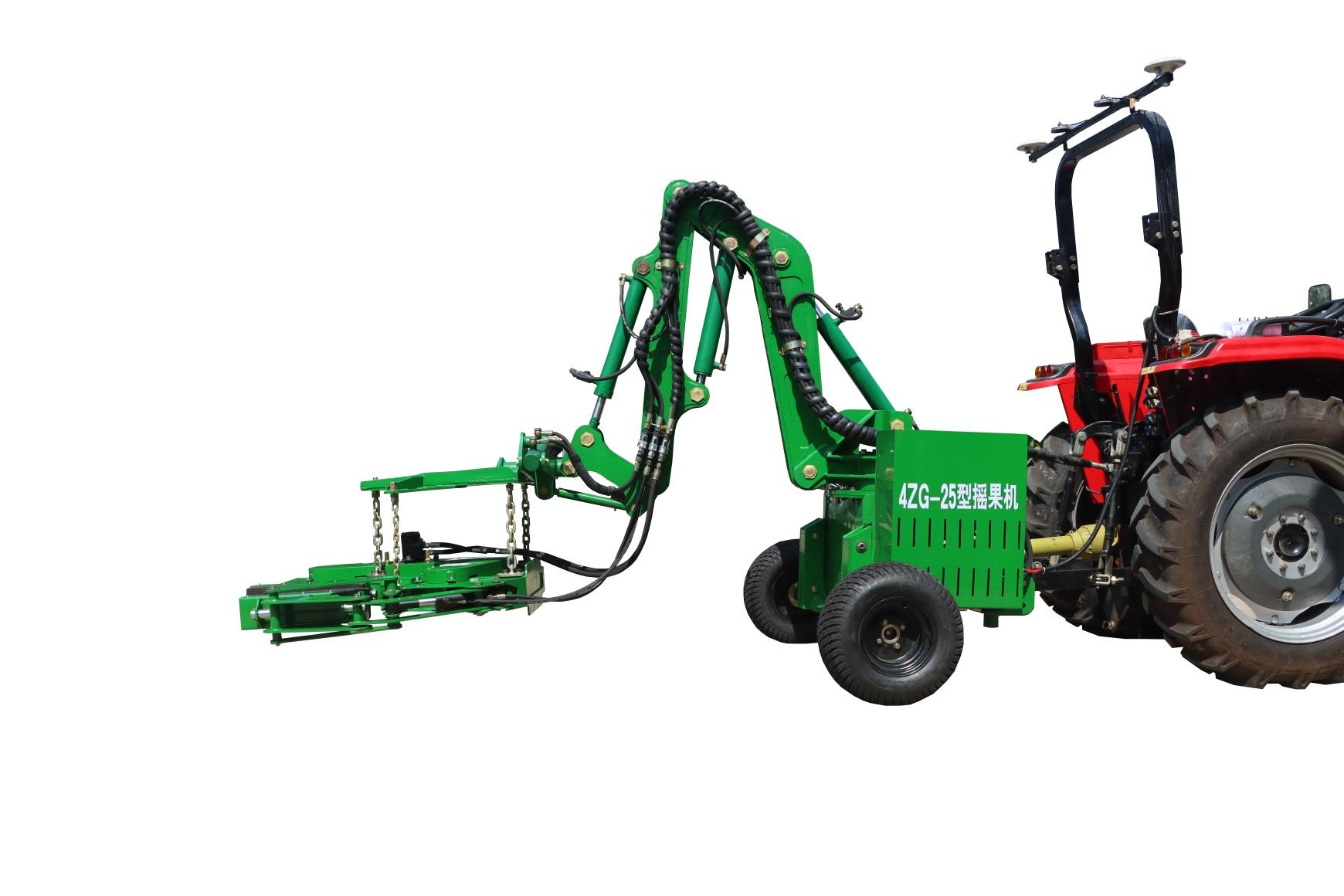

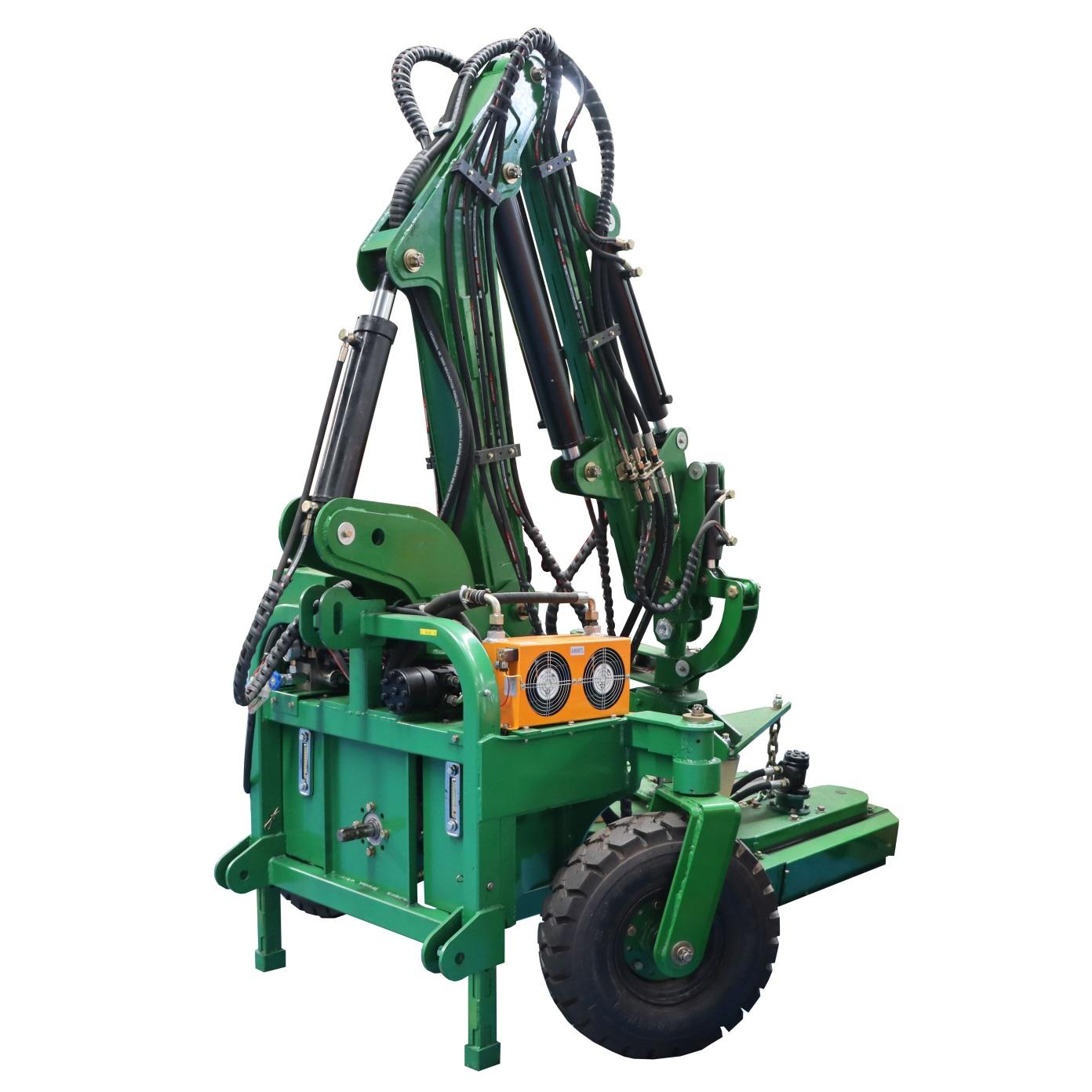

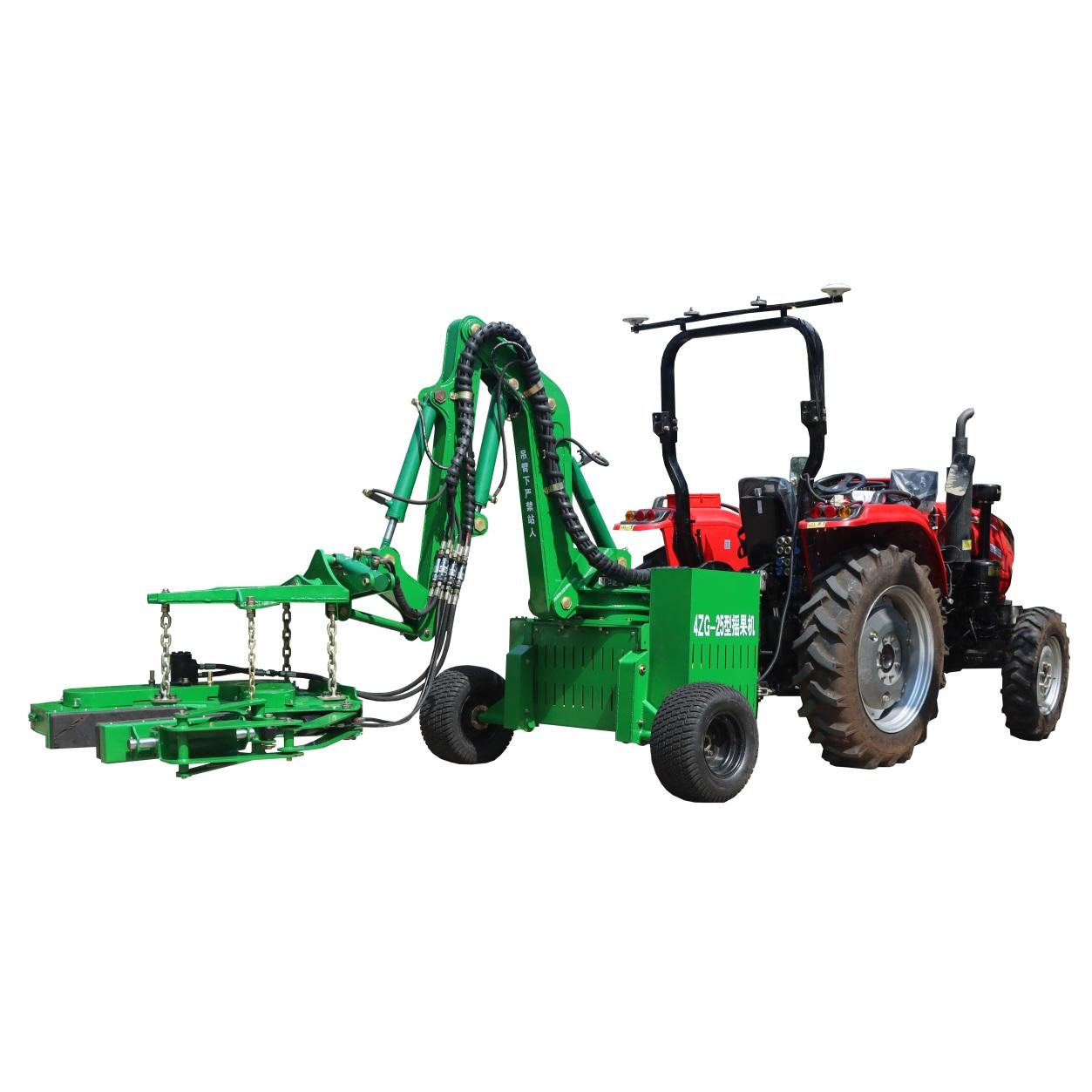

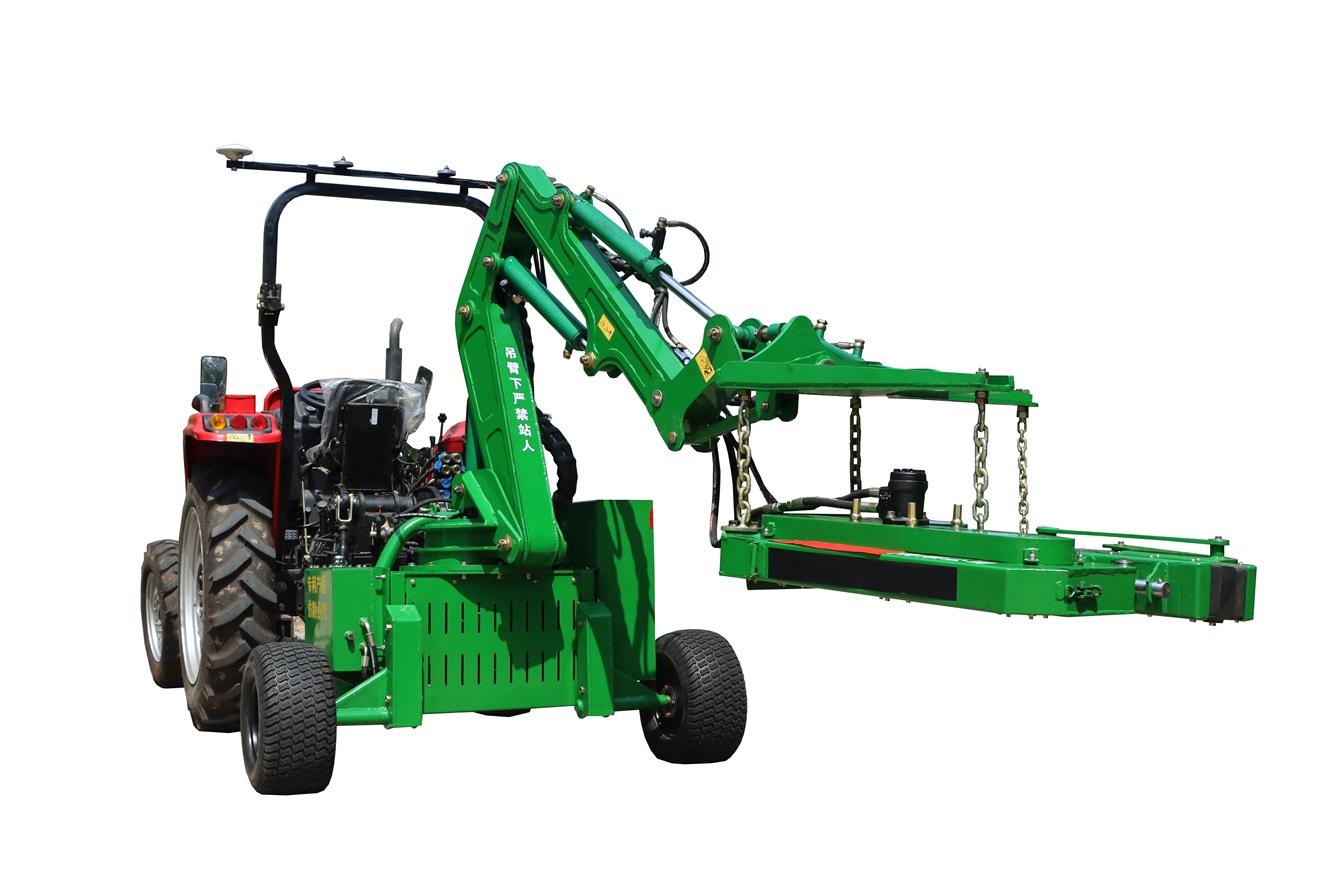

Product Image
