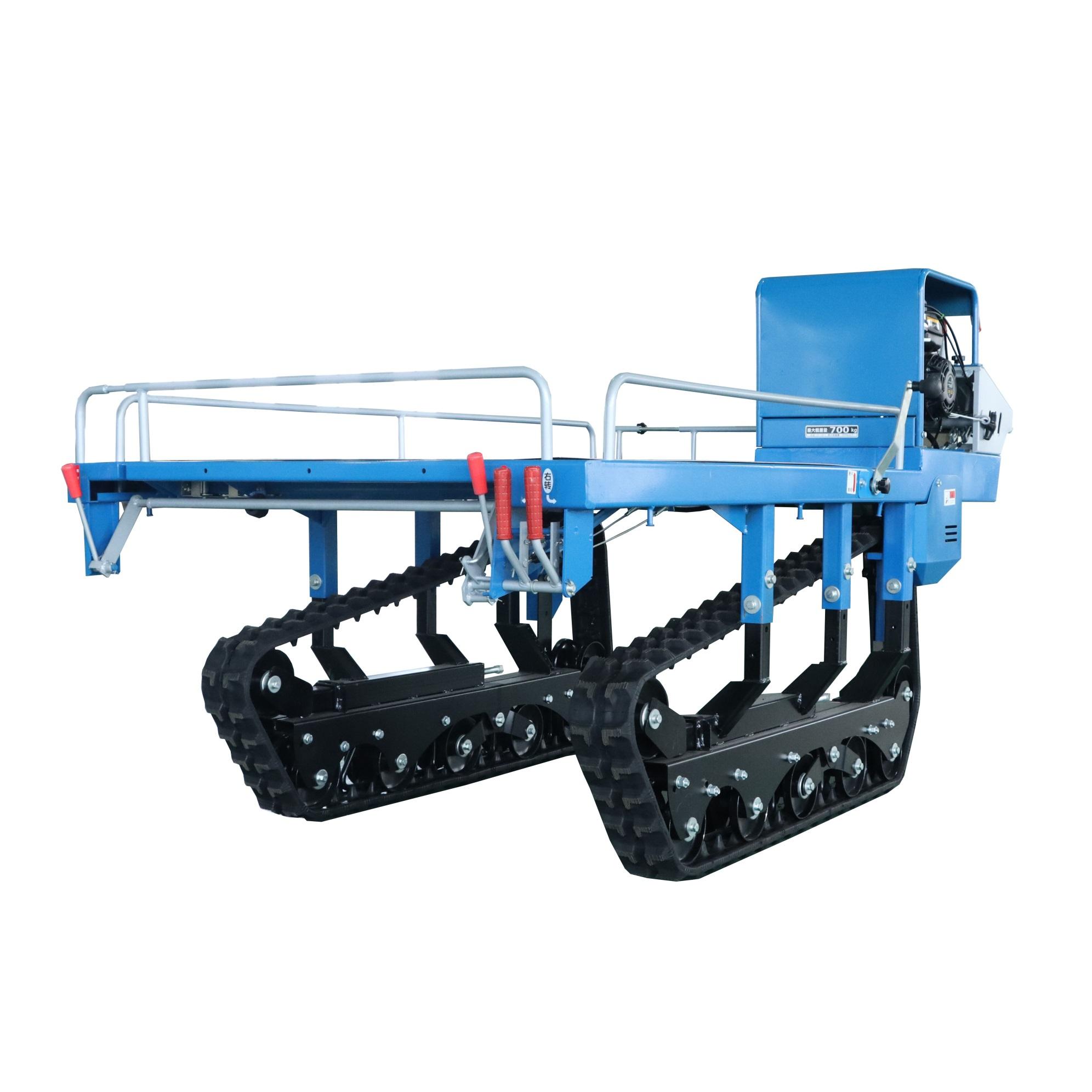

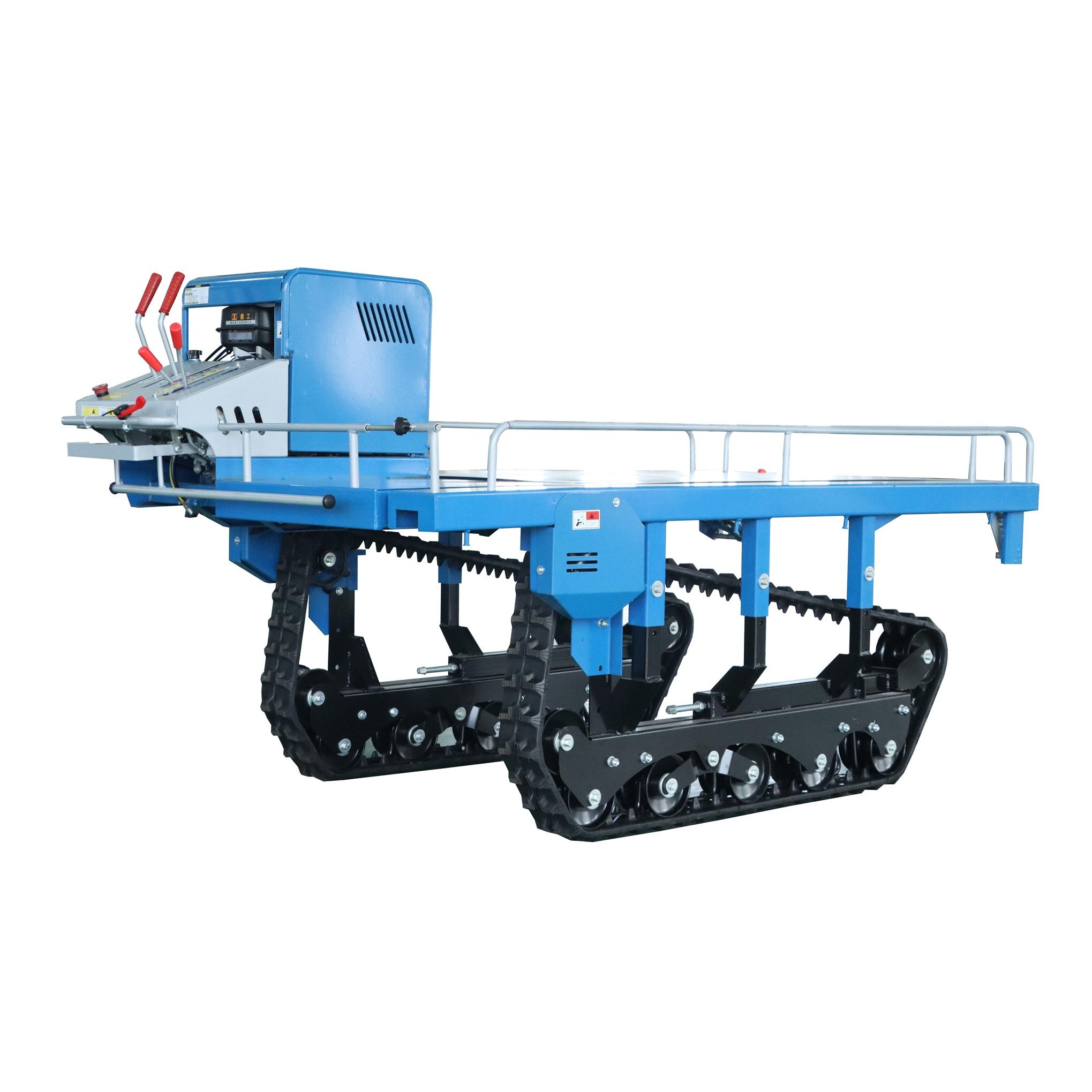

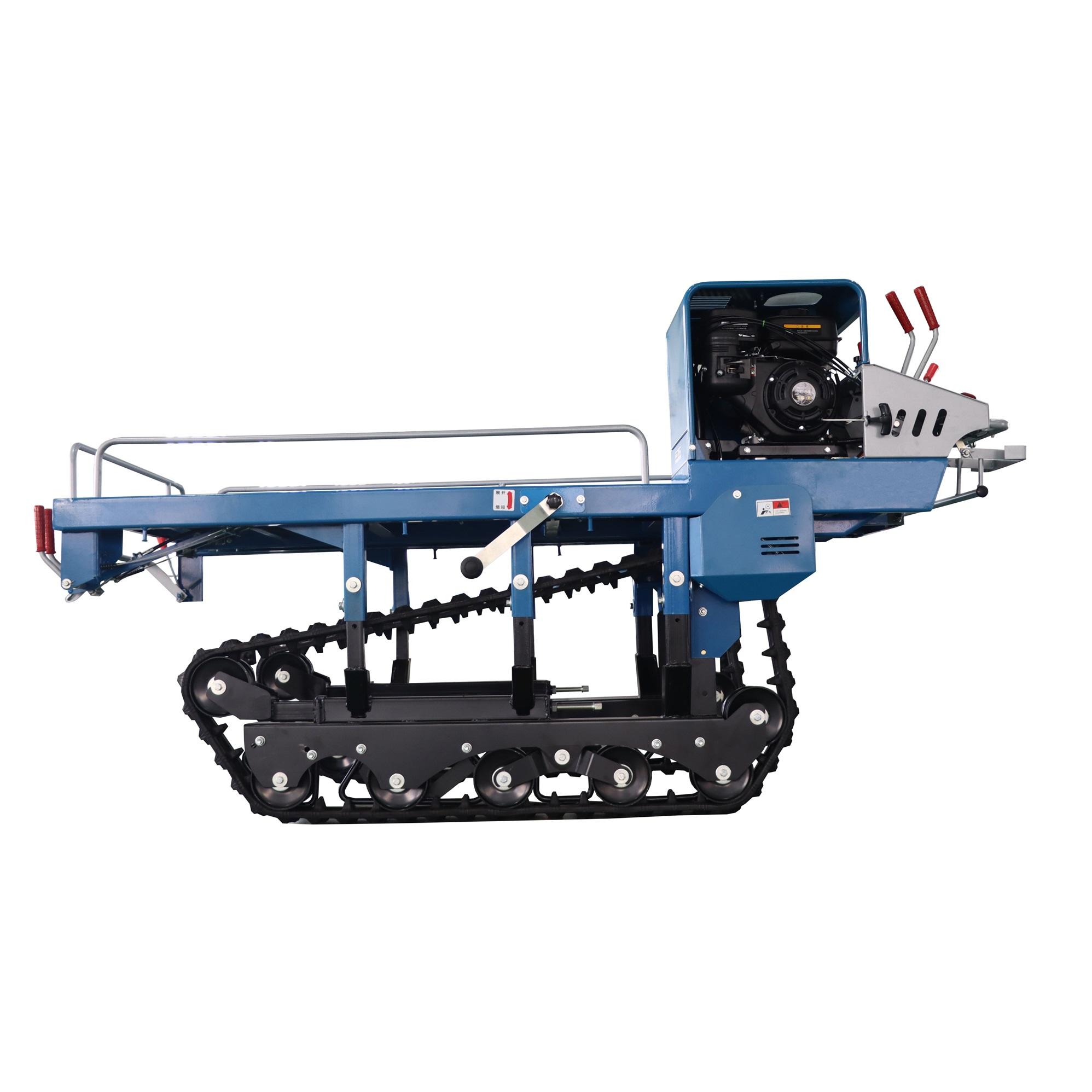

Pineapple fruit harvesting transporter

Model

7YLG-700A

Loading capacity

700 KG

Gearbox

F1, F2 ; R1 R2 with high and low speed

Tracked tread change range

900-1700 mm

Engine power

4.0 KW / 1800 / rpm

lowest ground contact length

700 / 800 / 900 mm

Gross weight

360 KG

Platform size

2150 * (1200-2000) MM

Gear shift

-2, -1, 0 , 1, 2

Work speed (F/R)

8.3-75 / 9-63 m/min

Overall size

2150*1200*1210 mm

Turning radius

1700 mm
